Gugusse Compact
The Gugusse Compact is an upgrade from the Gugusse Roller. The Gugusse Compact base combines in a single piece what was 3 pieces in the Gugusse Roller; the Tensioner Base, the Gate Base and the Main Drive. The Gugusse Roller's adjustable Gate Jaws and hole sensor are now replaced by non-adjustable but swappable Gates and hole sensors, you have to print one of each for each film format you wish to scan.
The rollers are now fixed size, you need to print eight for each film format you wish to scan (8mm and Super-8 sha-re the same rollers, but not the same gate and not the same hole sensor). You need to make 2 turntables. You need to make a control board. You need to print one BigSwivelArm.stl but two SmallSwingingArm.stl. 35mm doesn't need ReelRaisers but the other formats do, you'll need to print two for each format you'll scan.
The documentation is available on the Build Instructions page. You can also come and see us at: https://www.facebook.com/groups/552059449113276 if you have any questions.
DOWNLOAD THIS
Download the project STL and Gerber files here: gugussecompact_20240410.zip
Updated April 10, 2024, Changed: Added Modified Models
Files to print
I used a Creality CR-10 to 3D print my prototype so I would recommend this printer but there are some others that are as good (or maybe better, I wouldn't know).

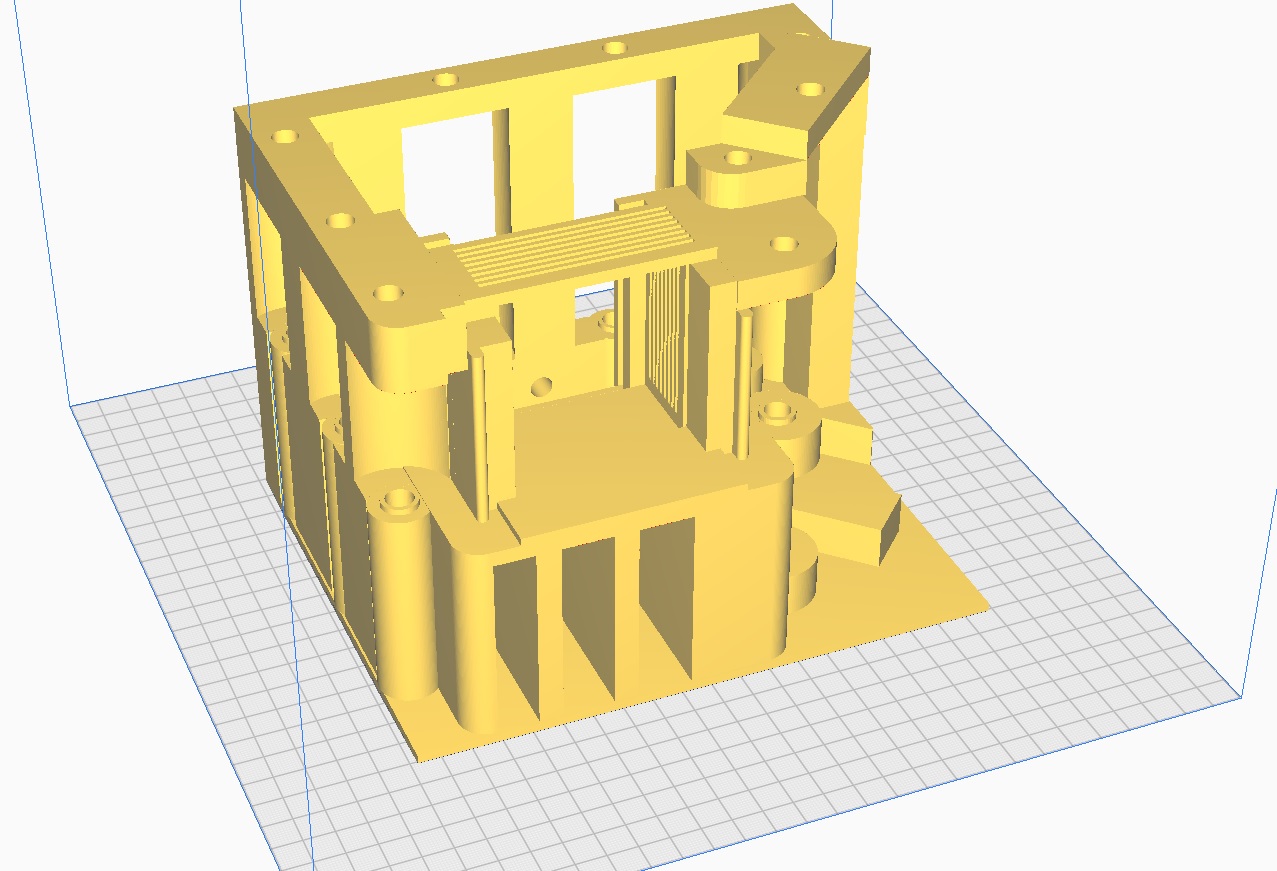

Start with the GugusseCompact.stl and/or a turntable main table, you need to know if your 3D printer is big enough before getting yourself into this project:

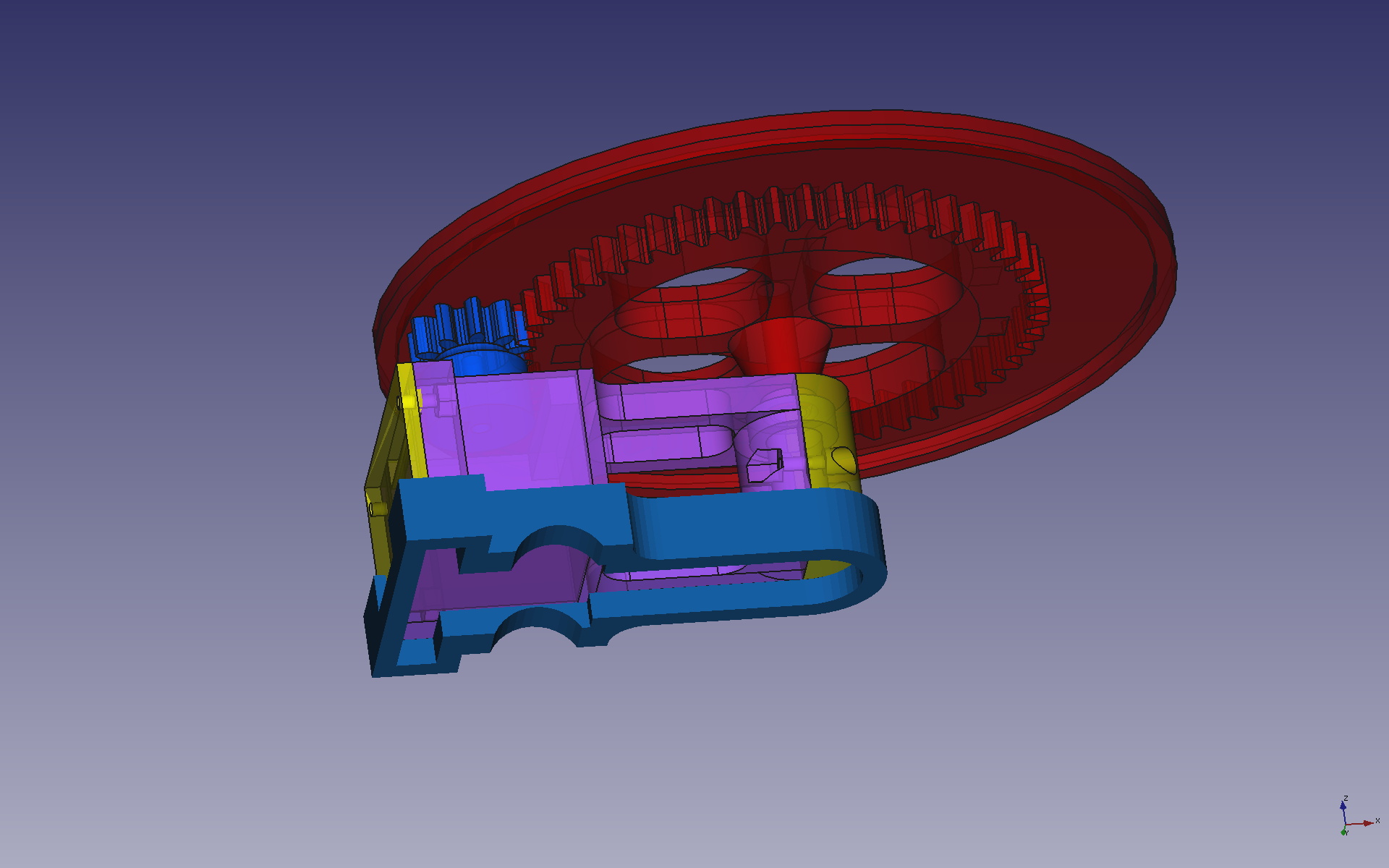

Turntables
- Note: You need to print 2 Turntables
- No required color.
